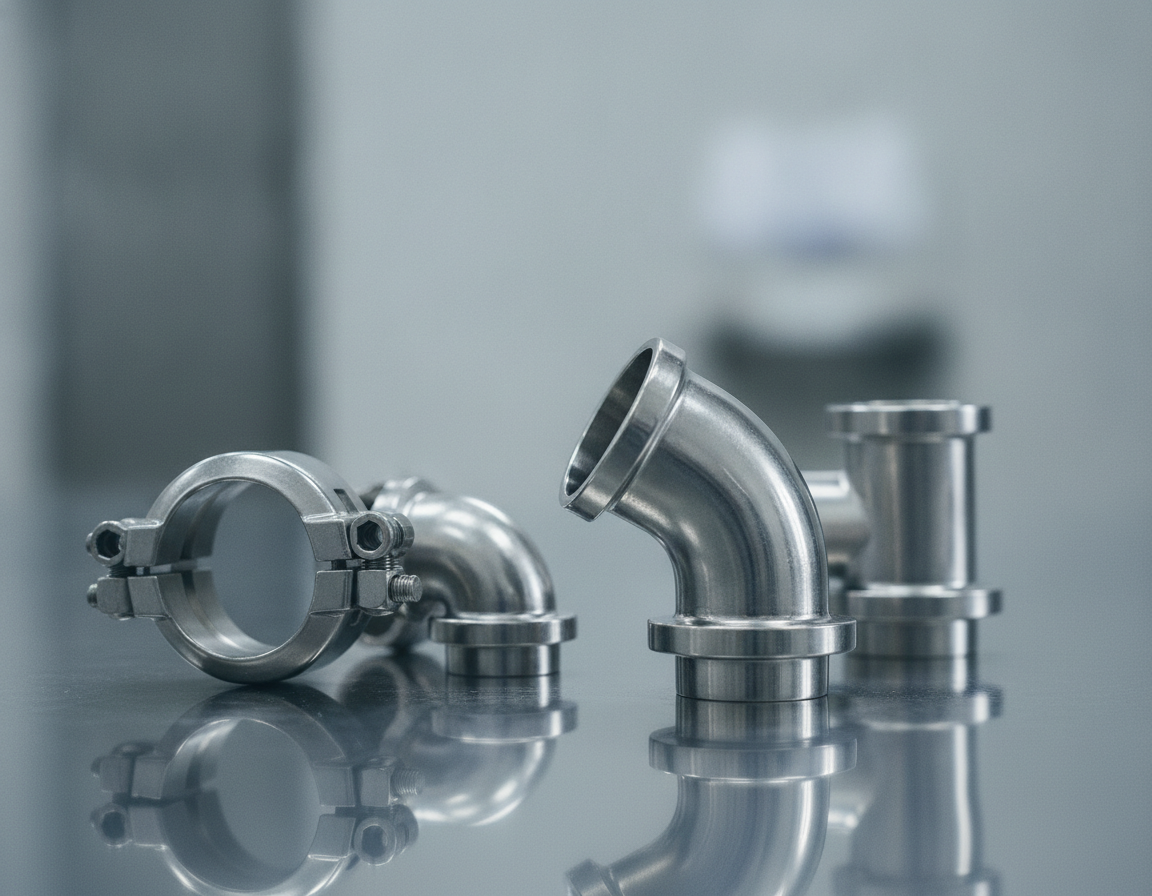

Across many industries, stainless steel sanitary pipe fittings are essential for keeping process systems safe. Components such as ferrules, clamps, sanitary valves, and fittings are made to maintain clean fluid paths. They minimize contamination risk while making cleaning, inspection, and maintenance easier.
Sanitary Coupling
Selecting the right Hygienic Fittings and Ss Sanitary Fittings affects product safety, uptime, and regulatory compliance. Material grade, surface finish, and connection compatibility are key selection factors. These details control how easily the system can be cleaned, validated, and maintained.
Reliable suppliers and detailed catalogs are vital for operations teams to select the right parts. Brands like CSI and distributors such as Installation Parts Supply provide essential information. Their catalog listings, lead times, and customer reviews can support purchasing decisions for Sanitary Valves And Fittings.
Essential Takeaways
- Stainless Steel Sanitary Pipe Fittings support contamination control in clean process systems.
- Cleanability and corrosion resistance are shaped by material grade and surface finish.
- Compatible Hygienic Fittings limit downtime during upgrades, changeovers, and maintenance.
- Catalogs and reviews from CSI and Installation Parts Supply assist dependable sourcing.
- Choosing the right Sanitary Valves And Fittings supports product quality and regulatory compliance.
Overview Of Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Clean-process systems rely on components made for hygiene, safety, and efficiency. A sanitary fitting must have smooth surfaces, tight seals, and easy cleaning access. These features reduce contamination and support clean-in-place and sterilize-in-place procedures.
Sanitary Fittings Definition And Purpose
Sanitary fittings, often called hygienic fittings, are specified to create crevice-free connections. That design limits bacterial growth and helps maintain product purity during transfer and processing. Their design facilitates quick cleaning and minimizes cross-contamination risks.
Key Industries Using Hygienic Fittings
Food processors rely on hygienic fittings to adhere to safety standards and prevent spoilage. Beverage manufacturers use them to safeguard flavor and shelf life. Pharmaceutical plants select fittings that meet strict regulatory requirements.
Biotech facilities need precise sanitary connections for cell culture and fermentation. These industries value traceability, repeatable cleaning, and material compatibility.
Why Stainless Steel Works Best For Hygienic Systems
Stainless steel is favored for its corrosion resistance, mechanical strength, and cleanability. Grades such as 304 and 316L can resist cleaning chemicals, process fluids, and elevated temperatures. They also support surface finishes such as electropolishing and low Ra values.
Stainless components help prevent bacterial growth and extend service life under aggressive cleaning. Tri Clover Sanitary Fittings and other standardized interfaces make easier the assembly and maintenance of robust hygienic systems.
Guide To Stainless Steel Sanitary Pipe Fittings
Stainless steel sanitary pipe fittings are critical in modern clean systems for food, beverage, and pharmaceutical industries. Choosing the right material, component type, and surface finish minimizes contamination risk and makes cleaning easier. This guide will review common grades, typical component families, and finish options for hygienic performance.
Materials And Grades Commonly Used
Type 304 stainless steel delivers corrosion resistance and mechanical strength, making it suitable for many general processing lines. It is often used for tanks, supports, and areas with lower risk of product contact.
Type 316L delivers superior resistance to chloride pitting and crevice corrosion. Pharmaceutical manufacturers often choose 316L for wetted parts because its low carbon content helps reduce sensitization during welding.
Matching grades across components helps maintain corrosion resistance and prevents galvanic issues when parts are joined. Specifying 304 or 316L early in design streamlines procurement of SS Sanitary Fittings and related parts.
Common Product Types And Their Roles
Ferrules are the primary connection points for butt-weld and weld-in assemblies. They are typically available in 304 or 316L with polished internal diameters to match process piping requirements.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings create smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings connect flexible lines and permanent pipe runs. Sanitary Valves And Fittings direct flow while maintaining cleanable contours. Designing with compatible SS Sanitary Fittings helps reduce leaks, downtime, and maintenance problems.
Surface Finish And Cleanability Requirements
Surface roughness affects how residues adhere. A 32RA internal finish is a common spec that combines cost and cleanability for most food and beverage applications.
Electropolishing further smooths the metal and enhances passivity. This treatment helps reduce microbial harborage and improves corrosion resistance in aggressive environments.
Specifying consistent finishes across ferrules, clamps, valves, and weld fittings ensures hygienic integrity. When components share 32RA or electropolished surfaces, cleaning validation becomes more repeatable.
| Component | Usual Material | Standard Finish | Primary Use |
|---|---|---|---|
| Ferrules for welded assemblies | 304 stainless or 316L stainless | 32RA internal/external finish | Sanitary welded pipe ends |
| Two-piece Tri-Clamp clamps | 316L preferred | 32RA finish or electropolished surface | Quick-release sanitary connections |
| Couplings and weld fittings | 304 / 316L | 32RA with optional electropolish | Permanent joins, elbows, tees |
| Sanitary flexible-line fittings | 316L often specified | Electropolished product-contact surfaces | Flexible process lines and transfers |
| Sanitary Valves And Fittings | 316L commonly used for product-contact areas | Polished internals | Cleanable flow control in process lines |
Tri Clover Fittings And Tri-Clamp Fittings Catalog Options
Tri Clover Pipe Fittings adhere to strict dimensional standards, ensuring compatibility across manufacturers. DIN 32676 and DIN 11864-3A dictate ferrule face geometry and clamp interfaces. These standards help sanitary lines remain leak-resistant, cleanable, and easy to maintain. These standards make easier the selection of Triclover Fittings for food, beverage, and pharmaceutical applications.
When perusing a Tri-Clamp Fittings Catalog, compare size ranges, material specifications, and surface finishes. Catalogs typically list two-piece clamps from 0.25″ to 4″, along with single-pin designs and corresponding gaskets. Ferrules are usually shown with length, material, and finish details, with 304 and 316L 32RA options common for improved cleanability.
Important catalog items include clamps, ferrules, and gasket sets sized by inches or DN. Small two-piece clamps may start under ten dollars, while larger clamps often fall in the low double-digit range. Each Triclover Fitting listing should show OAL, ID/OD finish, gasket compatibility, and material grade. This ensures the correct part is chosen at the time of order.
For high-pressure applications, double-bolt or heavy-duty two-piece clamps are available. These clamps may use a 304 stainless body with brass nuts to balance strength, corrosion resistance, and tightening performance. For critical process lines, select high-pressure clamps based on rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
Material choice affects service life, cleanability, and corrosion resistance. 316L ferrules offer superior resistance to chlorides in harsh environments. Ensure the Tri-Clamp Fittings Catalog lists both ferrule metallurgy and clamp construction. This helps with the selection of Tri Clover Pipe Fittings based on application needs and service conditions.
Spec sheets should include clamp size charts, ferrule dimensions, surface finishes, and part numbers to streamline procurement. A well-organized catalog makes Triclover Fittings replacement faster and helps minimize downtime. Choose suppliers that publish detailed specifications for each Tri Clover Fitting so interchangeability across brands can be confirmed.
Sanitary Connections, CSI Sanitary Fittings, And Compatibility
Sanitary connections are important for linking pipes, valves, and equipment in clean systems. The right joint type is critical for maintaining hygiene and efficiency. This section reviews common connection styles, brand interchangeability, and supplier reliability feedback.
There are several connection types, including clamp connections like Tri-Clamp, butt-weld and socket-weld fittings, threaded links, and sanitary hose fittings. Each type has its own pros and cons regarding assembly speed, cleanability, and leak risk.
Clamp connections are known for their quick assembly and ease of disassembly for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are suitable for low-risk applications where product contact is not a concern. Sanitary hose fittings need matched ferrules and a secure Sanitary Coupling to help prevent leaks.
Brand compatibility is critical when mixing components. CSI Sanitary Fittings and Csi Fittings follow common standards such as Tri-Clamp and DIN, which generally supports interchangeability with other manufacturers. Steel & O’Brien provides spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To verify compatibility, match the nominal size, sealing face, material grade, and surface finish. Verify standards such as DIN 32676 and DIN 11864 on datasheets. Mismatched finishes or grades can cause corrosion or trap product residues.
Customer feedback gives practical insights into supplier reliability. Reviews for CSI often mention consistent part quality and fast shipping, with some buyers reporting next-day delivery on stock items. Other customers highlight responsive communication after order questions or technical inquiries.
When comparing suppliers, review lead times, documented quality, return policies, and after-sale support. Reliable shipping and clear spec sheets reduce downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Connection Style | Ideal Use | Cleanability | Cross-Brand Notes |
|---|---|---|---|
| Tri-Clamp clamp connection | Frequent disassembly; product contact lines | High; gasketed seal easy to clean | Strong interchangeability when standards, faces, and sizes align |
| Butt-weld and socket-weld fittings | Permanent process runs requiring smooth internal bores | Excellent after correct weld finishing and polishing | Standard dimensions support cross-brand ferrule and coupling compatibility |
| Threaded | Non-product-contact lines, utilities | Moderate because threads may trap residue | Less common in product-contact lines; verify material and surface finish |
| Hose with Ferrule | Flexible transfer lines and temporary connections | Strong if fitted with matching ferrules and couplings | Requires matching ferrule profile and Sanitary Coupling for leak-free fit |
Sanitary Pipe Fittings Stainless And SS Sanitary Fittings Selection Guide
Choosing the right sanitary components involves a few focused steps. This guide helps you match size, material, and finish to your process needs. Use the metrics and checks below to minimize downtime and ensure hygienic performance.
Begin with size and designation. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating surfaces, gasket groove styles, and flange faces to ensure compatibility.
Material selection is important. For routine food and beverage lines, 304 covers strength and cleanability needs. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Many suppliers list 316L ferrules and fittings as standard choices for harsh service environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify target finishes such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-section, clamp type, and clamp pressure to help prevent leaks.
Review process pressure and clamp type. Standard sanitary clamps handle many everyday sanitary services. High-pressure applications need reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review pressure ratings in the catalog and select clamps rated above operating pressure for safety margin.
Copper Tri Clamp Fittings may be considered for specialized or niche applications. Copper tri clamp fittings deliver conductivity and antimicrobial benefits in select systems. Before pairing copper with stainless lines, validate compatibility with cleaning agents, product chemistry, and dissimilar-metal corrosion risk.
Final checks avoid costs. Compare catalog part numbers against DN/TC inch equivalents, confirm grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, clamp pressure, and part numbers to streamline spare-parts ordering and maintenance.
Installation, Maintenance, And Best Practices For Sanitary Coupling And Sanitary Weld Fittings
Ensuring the cleanliness and reliability of sanitary connections is critical. Follow specific steps for assembling tri-clamp assemblies and welded joints to avoid leaks and contamination. Keeping detailed records of materials, finishes, and maintenance is necessary for traceability and audits.
Proper assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces and make sure the sealing surfaces are properly aligned. Next, install the clamp, hand-tighten it, and then apply specified torque using a calibrated wrench. For high-pressure applications, use double-bolt clamps with suitable hardware and follow recommended torque values to avoid over-compression.
Sanitary Weld Fittings guidance
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas for purging to prevent oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If needed, rework rough spots through controlled grinding and electropolishing to restore low roughness and maintain hygiene.
Routine Sanitary Maintenance
Implement CIP and SIP cycles as required by the process. Regularly inspect ferrule faces, clamps, and gaskets after thermal cycles and scheduled cleanings. Replace gaskets when they show hardening, extrusion, cuts, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Common issue troubleshooting
When leaks appear, first check clamp seating, gasket condition, and ferrule alignment. Misaligned clamps can cause uneven compression and create leaks. To fix, loosen, realign, and retighten to the specified torque. For gasket extrusion or failure, confirm the correct gasket material and durometer, and verify that groove dimensions match ferrule specifications.
How to address surface damage
Surface damage such as scratches, pitting, or crevice corrosion can hold microorganisms. Minor scratches can be polished out and then electropolished to restore the Ra levels. Replace components if pitting penetrates the surface or if repair polishing would remove too much material.
Documentation and records
Maintain detailed records of material grades, surface finishes, gasket materials, clamp models, torque values, and service dates. Maintain calibration records for torque tools and welding equipment. Accurate records support compliance, audits, validation, and faster troubleshooting.
| Task | Timing | Key Action | Notes |
|---|---|---|---|
| Clamp torque check | After assembly, then monthly | Check with calibrated torque wrench | Reference the correct torque table for each coupling size |
| Gasket condition check | At scheduled intervals or whenever defects appear | Inspect for cuts, hardening, extrusion | Replace with matching material and durometer |
| Ra and surface condition check | After weld work and during quarterly checks | Measure roughness and inspect visually | Restore finish when roughness exceeds the process specification |
| Weld profile inspection | After installation, then yearly | Inspect weld shape, smoothness, and defects | Repair and re-polish Sanitary Weld Fittings as needed |
| CIP and SIP validation | Each process cycle | Monitor time, temperature, concentration | Keep records for traceability and audits |
Buying Sanitary Fittings From Catalogs, CSI, And Installation Parts Supply
Starting with a detailed catalogue review is key. Look for a Sanitary Fittings Catalog that lists material grade, finish, and pressure rating. It should also mention standards like DIN 32676 or DIN 11864-3A. Confirm item codes and stock status before ordering to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, focus on clamp type, gasket compatibility, and dimensional specs. Check whether ferrules and fittings are finished to 32RA, electropolished, or another required specification. A detailed catalog makes gasket and clamp matching easier during assembly and maintenance.
Evaluate Csi Fittings by reading independent reviews, checking supplier lead times, and comparing published specifications. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms and inspection requirements for precision parts used in tight-tolerance projects.
Use the following example listing to estimate market pricing and compare common stocked sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Catalog Item | Nominal Size | Grade | Surface Finish | Catalog Price (USD) |
|---|---|---|---|---|
| Two-piece single-pin clamp | Quarter-inch to three-quarter-inch | Type 304 stainless steel | Standard | Approx. $3.91 |
| Two-piece single-pin sanitary clamp | 1 inch | Type 304 stainless steel | Standard finish | $4.91 |
| Single-pin two-piece clamp | Two-inch size | 304 stainless | Standard | $5.99 |
| Two-piece single-pin clamp | 2.5 inch | Type 304 stainless steel | Standard catalog finish | Approx. $6.93 |
| Two-piece single-pin sanitary clamp | Three-inch size | 304 | Standard finish | Approx. $7.54 |
| Two-piece single-pin clamp | 4″ | Type 304 stainless steel | Standard catalog finish | Approx. $9.16 |
| Tri-Clamp ferrule | 2 inch with 1.125 inch OAL | Type 316L stainless steel | 32RA ID/OD | 4.24 USD |
| Ferrule TC | 2″ — 1.125″ OAL | 304 stainless | 32RA ID/OD | Approx. $4.06 |
| TC sanitary ferrule | 3″ | Type 316L stainless steel | 32RA ID and OD | $6.15 |
| High-pressure sanitary clamp | One-and-a-half-inch size | 316 | Polished | Approx. $12.93 |
| High-pressure sanitary clamp | 2 inch | Type 316 stainless steel | Polished | $14.62 |
| High-pressure double-bolt clamp | 3 inch | 316 stainless | Polished finish | 20.26 USD |
Installation Parts Supply is a U.S.-based source for sanitary valves, ferrules, and clamps. Use their online listings to confirm availability, surface finishes, material grades, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, prioritize catalogs that clearly separate 304 from 316L, state surface finish, and cite applicable standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Sanitary Pipe Fittings Summary
Stainless Steel Sanitary Pipe Fittings are critical for maintaining cleanliness in various industries. Choosing between 304 and 316L, along with finishes such as 32RA or electropolishing, directly supports cleanability. This minimizes contamination risks significantly. Ensuring that Tri Clover Fittings and other components meet standards like DIN 32676 is important for tight Sanitary Connections and easy interchangeability.
When selecting fittings, review the material, finish, and connection type. Connection choices may include Tri-Clamp, weld, hose, or threaded fittings depending on pressure, product contact, cleaning requirements, and regulations. Use high-pressure clamps where process pressure or safety margins require them. Consistency in gaskets, clamps, and ferrules prevents leaks and simplifies maintenance. Proper installation and regular cleaning extend fitting life and support compliance with hygiene standards.
Catalogs show competitive pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When looking for where to buy sanitary fittings, prioritize reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines streamlines system design and upkeep. Clear specifications, consistent materials, and reliable sources help minimize downtime. That helps protect product quality in hygienic processing environments.
